AC Wallbox 22kW 6.1m Type 2 Cable + RFID card reader + 1.5m CEE cable (32A 3 Phase)

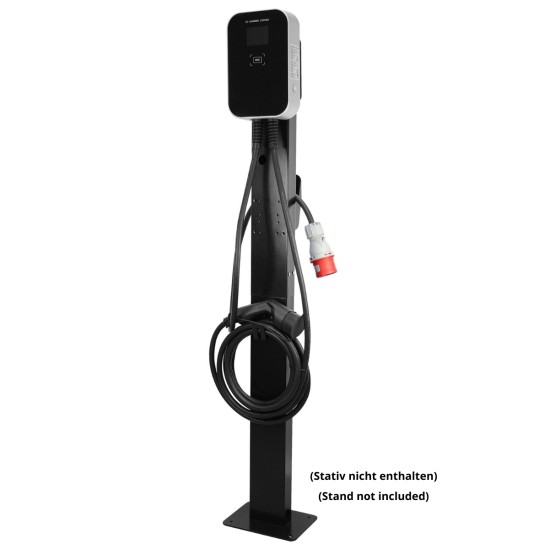

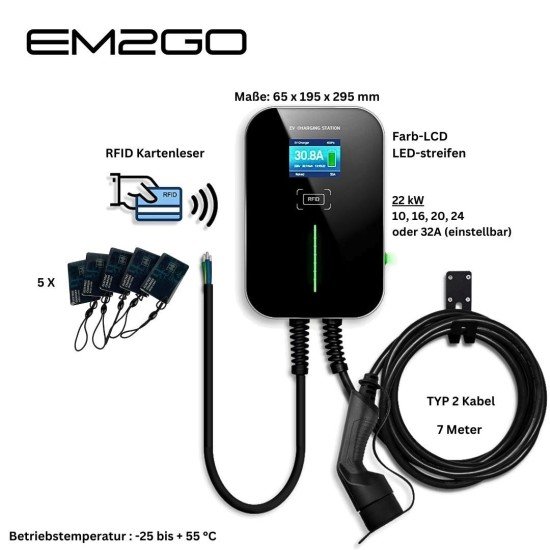

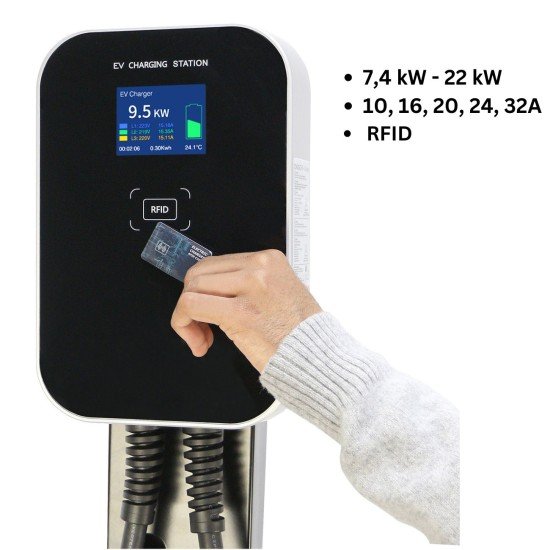

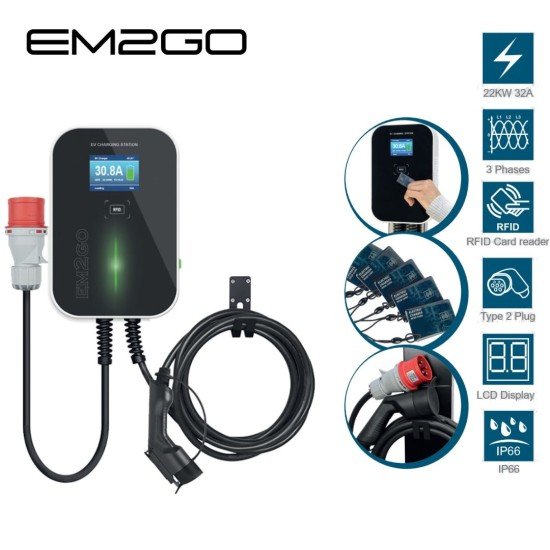

The EM2GO EV charging station allows you to charge your electric vehicle safely and quickly. Simply connect the type 2 plug ofthe 6 metre cable to your electric vehicle and the vehicle will be charged with a full 22 kW power. The built-in load control allows youto adjust the output current by limiting the current draw. The output current can be set to 10, 16, 20, 24 and 32A.The 22 KW EV charger has an RFID card reader that allows the charger to be turned on and off. The built-in colour display informsyou during the charging process about the current state of charge, charging voltage, current and temperature. An LED strip informsyou about the correct charging process.The EM2GO EV charging station is equipped with intelligent electronics, so your vehicle is protected against residual current, short circuit and high temperatures. Mounting material for wall mounting is included in the scope of delivery of the charging station.A column for floor mounting is optionally available.

Technical data:

• Operating voltage: 400V AC ±10% , 50-60 Hz, 3-Phases
• Operating current: 32 amps
• Max. Output power: 22 kW
• Housing: IP66, splash water protected
• Operating temperature: -25 to + 55 °C
• Display: Colour LCD, LED-stripes
• RFID Card reader
• Protection against: over and under voltage, overload protection, short circuit protection,over temperature protection, lightning protection, fault current (RCMU)
• Connection: Type 2 plug
• Cable length: 6.1 meters
• Structure: CE standards EN61851-1: 2011, EN61851-22:2002
• Dimensions: 65 x 195 x 295 mm
• Weight: 7 Kg
