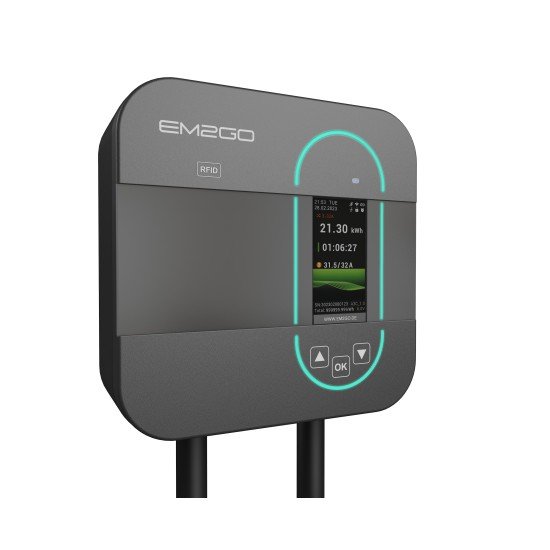

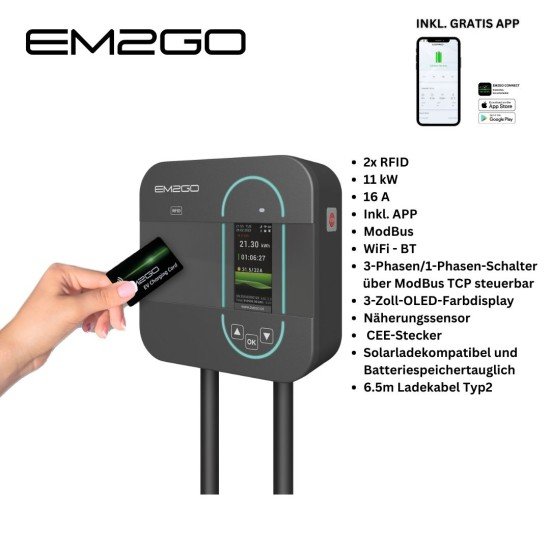

AC Wallbox "Home" 11kW 6.5m Type 2 Cable Bluetooth + App + RFID + ModBus TCP

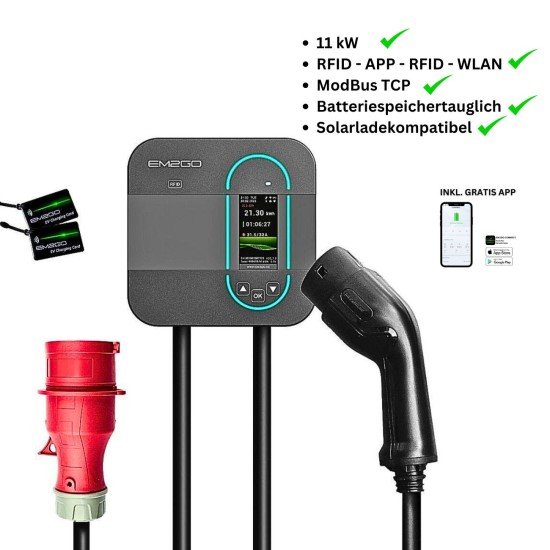

This wallbox is solar charging compatible and suitable for battery storage! The compact AC wallbox from the Home series is designed for use in private households. 3-phase EV charging station with 11kW and 16A CEE plug for installation-free use at an existing CEE socket.

6.5 metre cable with type 2 plug for connection to a vehicle.

This wallbox can be connected to photovoltaic systems and battery storage systems using the ModBus TCP protocol via WLAN. The wallbox can switch between one and three phases to utilise excess PV power.

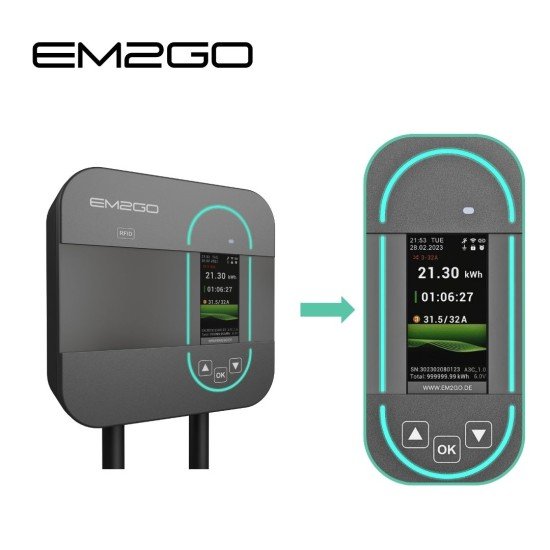

3-inch OLED display that provides information on the status of the wallbox and the charging process. The wallbox can be set in a controlled manner using the softbuttons.

PIN protection against unauthorised use. An in-built proximity sensor switches the display on when approached and a brightness sensor automatically adjusts the brightness of the display to the surroundings. The status of the wallbox can be recognised directly via the built-in LED strip.

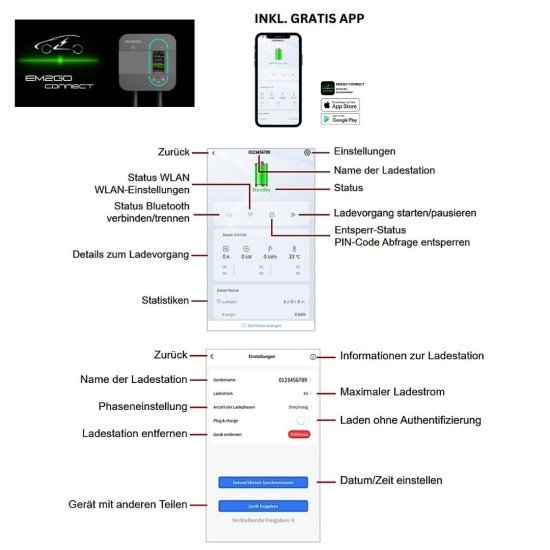

Easy operation thanks to WLAN and WI-FI interface for iOS and Android. Charging processes can be activated either without authentication by connecting the vehicle or after authentication via RFID cards, the app or via ModBus.

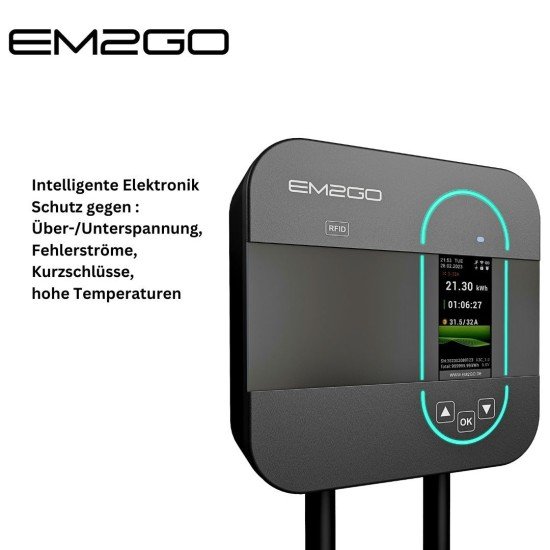

The built-in AC/DC sensitive residual current sensor (RCMU) protects against residual currents during a charging process. This means that your vehicle is optimally protected against over/undervoltage, residual currents, short circuits and high temperatures. The IP65 and IK08 protection classes ensure that the charging station can also be operated outdoors. The enclosed cable holder allows the charging cable to be wound up to save space.

Highlights:

Technical data:
